MCDS 80 Liter Medical Waste Autoclave with Shredder Steam Sterilizer

MCDS series shredding autoclave for medical waste is newly developed and produced by our company. It is widely used in hospital, clinic, health center and dentists etc. It meets the standard of GB150-2011 Pressure Vessel and TSG R0004-2009 Pressure Vessel Safety Rules. Shredding, sterilization and drying can be done in one autoclave, thus to avoid second pollution. It saves space. And can greatly reduce costs of packaging, transportation and burying.

  • Product Description
  • Technical Parameters
  • Video

80 Liter Medical Waste Autoclave with Shredder Steam Sterilizer Description:

Medical Autoclave with Shredder is the most popular and cost-effective medical waste treatment technology. Unlike incinerators, Autoclave for Waste Disposal technology does not produce any harmful emissions of combustion air pollutants, such as hydrochloric acid, carbon monoxide, dioxins, metals (particulate matter), etc.

The medical waste autoclave steam sterilizer can be safely buried and disposed of after shredding and sterilization. Properly steam autoclave medical waste does not produce infectivity and safety when disposed of in sanitary landfills. Medical waste sterilizer shredder is specially designed for sterilization of medical waste in hospitals, scientific research institutes and laboratories.

autoclave with shredder,medical waste autoclave,autoclave for waste disposal,autoclave steam sterilizer,medical waste sterilizer shredder



◊Technical Advantages:

1. The whole process is automated, crushing and sterilization is completed in a closed container.

2. Shredding waste to enhance sterilization

3. After the waste is treated, it can be safely disposed of as common municipal waste.

autoclave with shredder,medical waste autoclave,autoclave for waste disposal,autoclave steam sterilizer,medical waste sterilizer shredder

Processing:

autoclave with shredder,medical waste autoclave,autoclave for waste disposal,autoclave steam sterilizer,medical waste sterilizer shredder

1. Feeding

Pour the medical waste into the feeding port and close the door.

2. Shred

The gear motor drives the blade on the shaft to rotate in the opposite direction, and the blade cuts, shreds, squeezes and pulverizes the material. After shredding, drop it into the sterilization chamber.

autoclave with shredder,medical waste autoclave,autoclave for waste disposal,autoclave steam sterilizer,medical waste sterilizer shredder

3. Vacuum

Contains two periods of pre-vacuum and pulsed vacuum. The fundamental principle is to use the negative pressure of the vacuum pump to draw out the cold air in the sterilization chamber, so that after the sterilization chamber meets the limited vacuum degree, the saturated steam is filled in, so as to meet the specified pressure saturation degree, which is better for the sterilization chamber. Sterilize the sterilized product.

After this stage, the cold air removal rate of the inner cavity can reach more than 99%, ensuring that there is no dead angle in the inner cavity and the sterilization is qualified.

4. Heating

Heating is achieved by injecting saturated steam, which is produced by an internal steam generator, until a uniform temperature of 134°C (274 F) is reached in the upper and lower chambers.

autoclave with shredder,medical waste autoclave,autoclave for waste disposal,autoclave steam sterilizer,medical waste sterilizer shredder

5. Sterilization

Sterilization is accomplished by holding at 134°C (274 F) – 138 °C (280 F) and equivalent pressure for 10 – 15 minutes.

6. Exhaust

At this stage, excess steam is removed from the chamber and, with the help of positive pressure or vacuum, the condensate that is sterile and can be safely drained into the sewage system is drained.

autoclave with shredder,medical waste autoclave,autoclave for waste disposal,autoclave steam sterilizer,medical waste sterilizer shredder

7. Unloading

Manually open the unloading door and load the sterilized waste into the material transfer vehicle. The final product is reduced in volume (up to 80%) and can be safely recycled or disposed of as normal municipal waste.

80 Liter Medical Waste Autoclave with Shredder Steam Sterilizer Features:

1. Pressure chamber

304 stainless steel cabinet with jacket design, ensure the quality of saturated steam, improve the quality of sterilization.

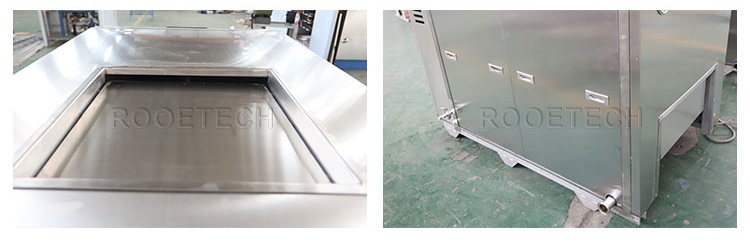

2. Feed port

The feed port is located at the top of the machine, and the electrically controlled door opens and closes.

autoclave with shredder,medical waste autoclave,autoclave for waste disposal,autoclave steam sterilizer,medical waste sterilizer shredder

3. Discharge port

The discharge port is located on the side, and the lever type lifting is completed manually to discharge the waste material.

The discharge door is equipped with PTC heater to ensure that the sterilized waste is dry and sterile.

Equipped with a dump truck for waste transfer.

autoclave with shredder,medical waste autoclave,autoclave for waste disposal,autoclave steam sterilizer,medical waste sterilizer shredder

4. Double shaft shredding system

2.2KW motor drive, low speed dual-shaft shredding, shredding all medical waste.

Automatic reversal system can prevent the feed from getting stuck too fast.

Crushing size can be adjusted according to customer requirements.

autoclave with shredder,medical waste autoclave,autoclave for waste disposal,autoclave steam sterilizer,medical waste sterilizer shredder

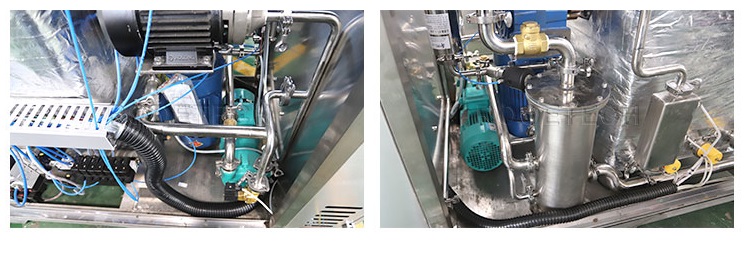

5. Piping system

The pipeline system is composed of vacuum pump, pressure gauge, filter, pressure sensor and various pipes.

The piping system is made of high quality stainless steel pipes, and the vacuum pump and valve parts are made of well-known brands at home and abroad to ensure the reliable operation of the equipment.

autoclave with shredder,medical waste autoclave,autoclave for waste disposal,autoclave steam sterilizer,medical waste sterilizer shredder

6. Water supply system

It is composed of water pump, level controller, Angle valve, check valve and so on.

The water is connected to the pump, and the system starts to work automatically. When the set water level is reached, the steam generator generates steam.

Available sources of steam are: boiler room steam or steam generator.

autoclave with shredder,medical waste autoclave,autoclave for waste disposal,autoclave steam sterilizer,medical waste sterilizer shredder

7. Control system

LCD panel displays temperature, pressure, time, running status, fault alarm, touch operation interface.

Equipped with printer, printing date, time, process parameters.

Perfect three-level authority management system, effectively prevent misoperation, rights and responsibilities clearly defined.

autoclave with shredder,medical waste autoclave,autoclave for waste disposal,autoclave steam sterilizer,medical waste sterilizer shredder

Leave a Reply

Your email address will not be published. Required fields are marked *

Main Parameter
Model MCDS-80
Overal size 1720*890*1370mm
Weight(kg) 1300
Chamber volume: 80L
Processing production: 10~15kg/h
